Product B - English

User Manual

RK3528 Android system adapter guide based on the English manual: product description, parameters, Android system entry, wireless CarPlay / Android Auto, phone mirroring, system settings, and after-sales service.

Start setup Wireless connection RK3528 / Android System

Product description

Product Description

This product expands the Android system platform through the in-vehicle USB interface. It is only compatible with vehicles that have Apple CarPlay installed. It includes YouTube, Netflix, a built-in Play Store, and supports app installation, easily enabling Android system / wireless CarPlay / Android Auto / AirPlay / Mirror and other functions.

Support Car Machine

The product supports original wired Carplay and Android Auto devices. This product is preset for wired Carplay channel entry. If you need Android Auto access, please contact customer service.

Parameter

Hardware

  • Hardware configuration: RK3528.
  • CPU: Quad-core A53 2.0.
  • GPU: Adreno 610.

System and wireless

  • System: Android System.
  • Wireless Network: 2.4G/5G, 802.11 a/b/g/n/ac/ax ready.
  • Bluetooth communication: 5.1BLE + 5.0BLE.

Power

  • Power Input: 5V=1A.
  • Operating Environment: -30C~75.

How to use the product?

1

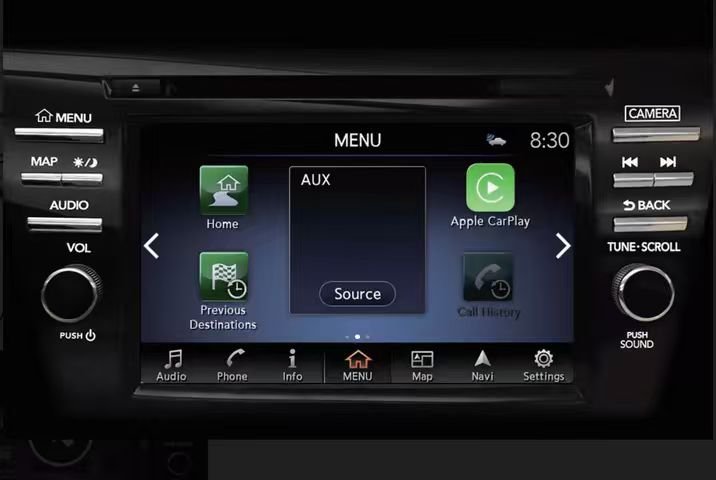

Product device USB Type-C cable Vehicle display

Insert the product into the
car USB/Type-c interface

2

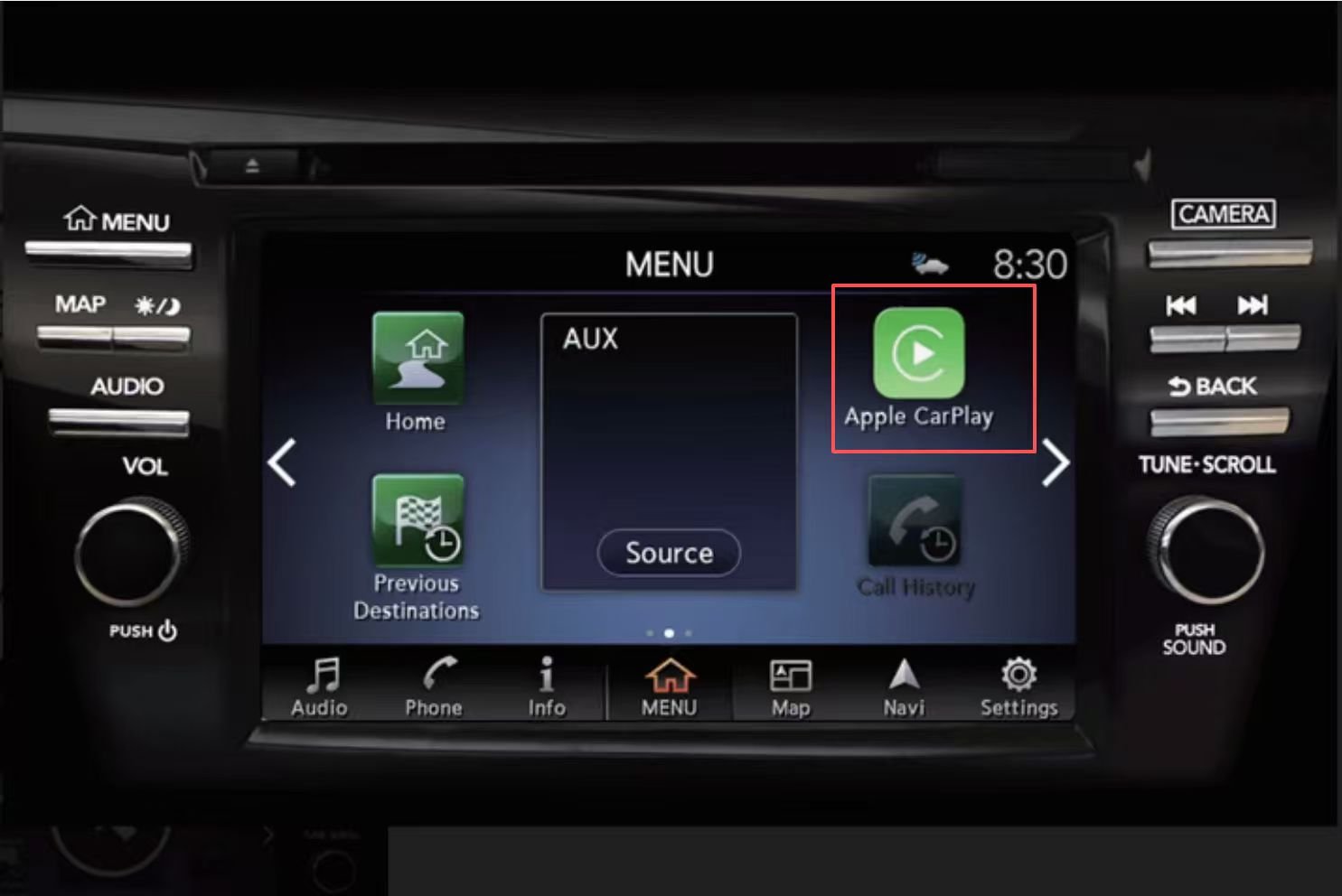

OEM Carplay icon highlighted

Click on
OEM Carplay Icon

3
Android system home screen

Enter the
Android system

How to use wireless CarPlay / Android Auto?

Support

  1. Support Apple phones and Android phones.
  2. For Carplay: Supports iPhone 6 and above, and the software version is iOS 10 and above.
  3. For Android Auto: Supports Android 11 or above models, and the phone supports wireless Android Auto.

Notice

  1. When using the wireless Carplay / Android Auto function, the WIFI network will automatically disconnect. If you need to use the network, please turn off Carplay / Android Auto and then reconnect to the WIFI network.
  2. The product enters the Android system first. If you need to automatically connect to Carplay / Android Auto, please turn on Carplay / Android Auto.
1

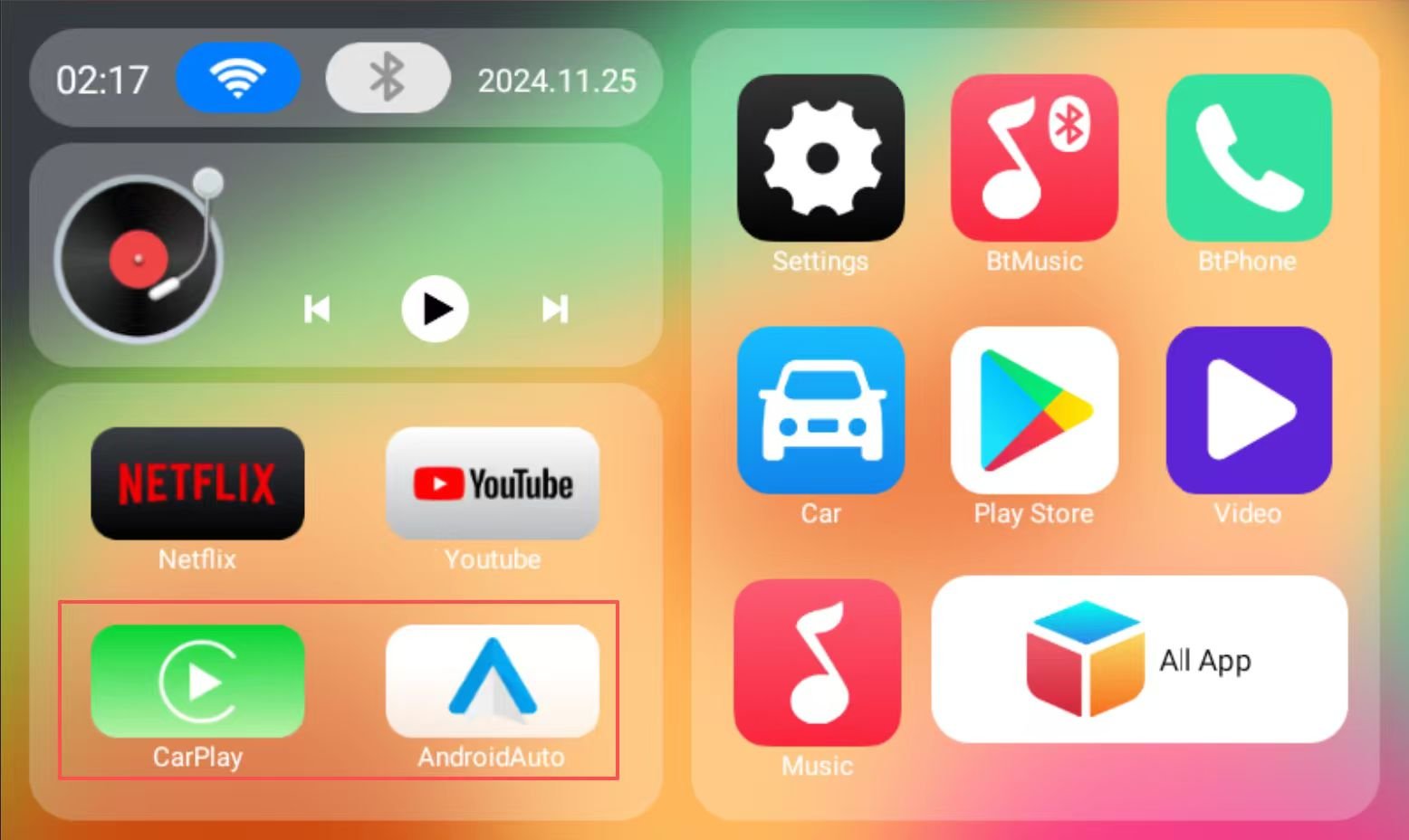

Carplay and Android Auto entry screen

Click Carplay / Android Auto

2

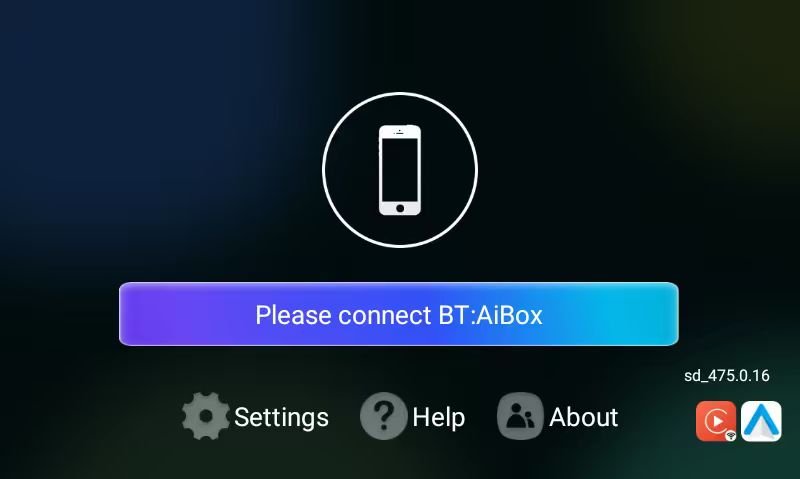

Bluetooth name screen

Select the Bluetooth name
on your device

3

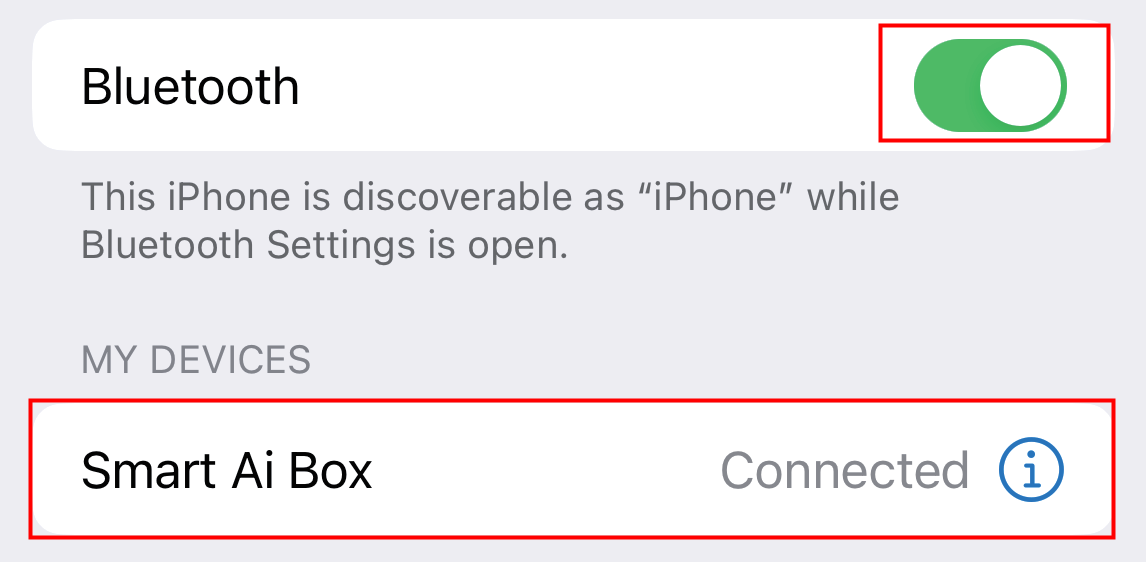

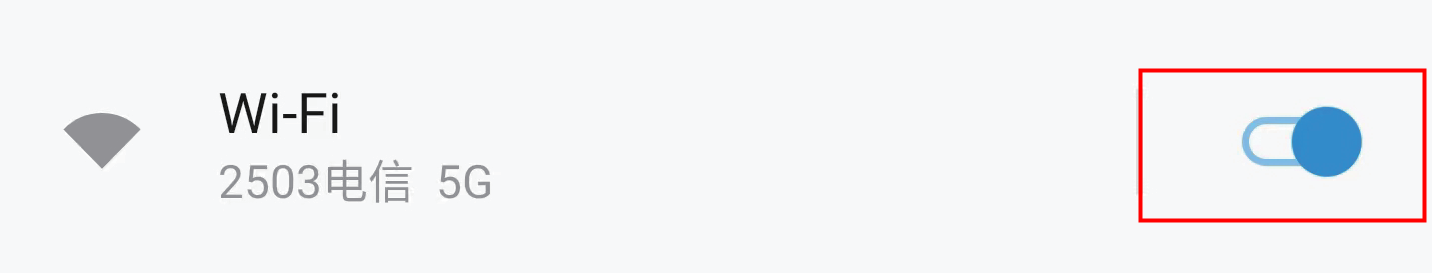

Phone Wi-Fi switch highlighted Phone Bluetooth pairing device name highlighted

Turn on the Bluetooth and WIFI of your mobile phone,
and use the Bluetooth pairing device name

4

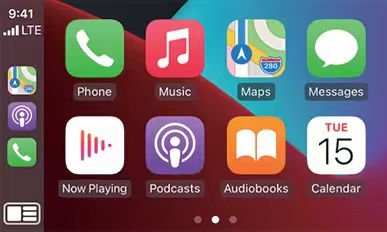

Carplay icon Wireless Carplay screen

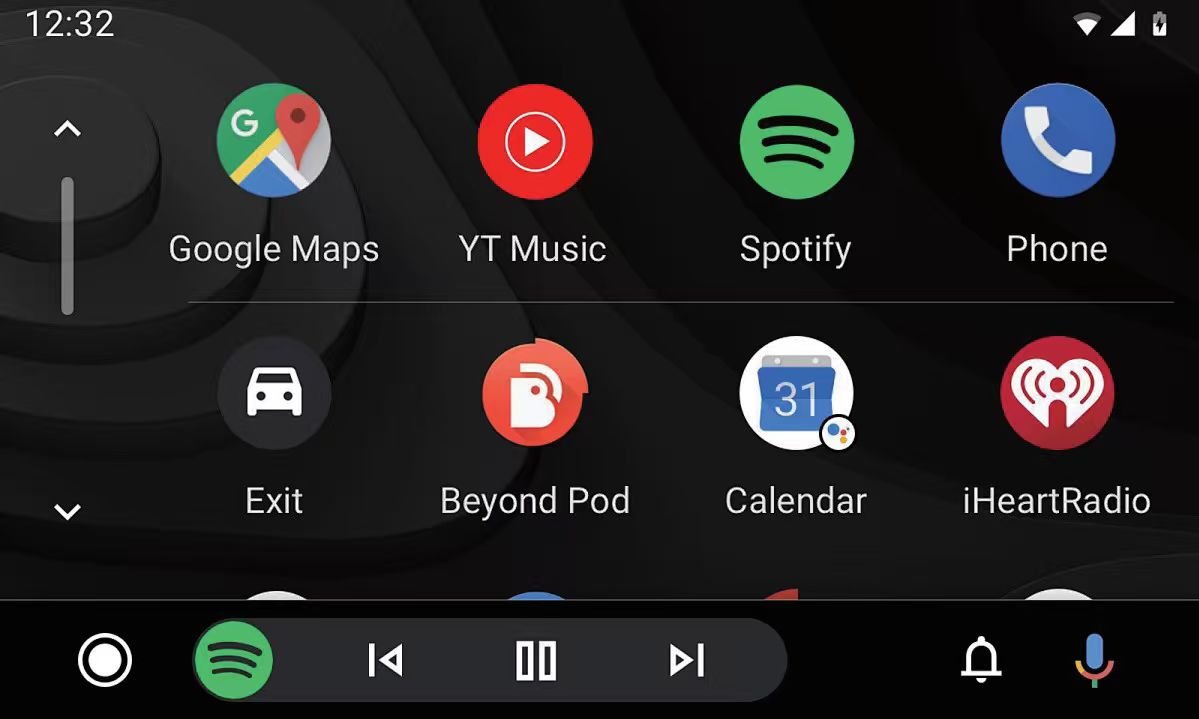

Android Auto icon Wireless Android Auto screen

Realize wireless Carplay / Android Auto

How to mirror Apple phone?

Apple mirror instructions

  1. Use your mobile phone, turn on the hotspot, let the device connect to the mobile hotspot, and maintain the same network.
  2. Click on the Mirror application.
  3. Click Airplay on your phone to cast the screen.
1

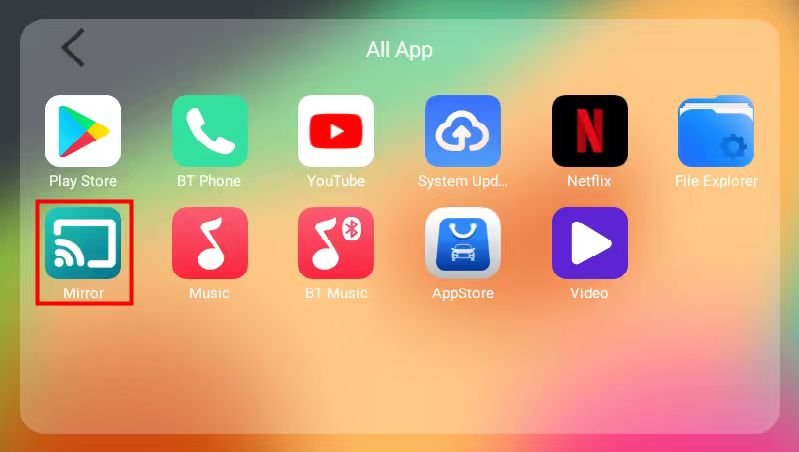

Mirror app highlighted

Click Mirror

2

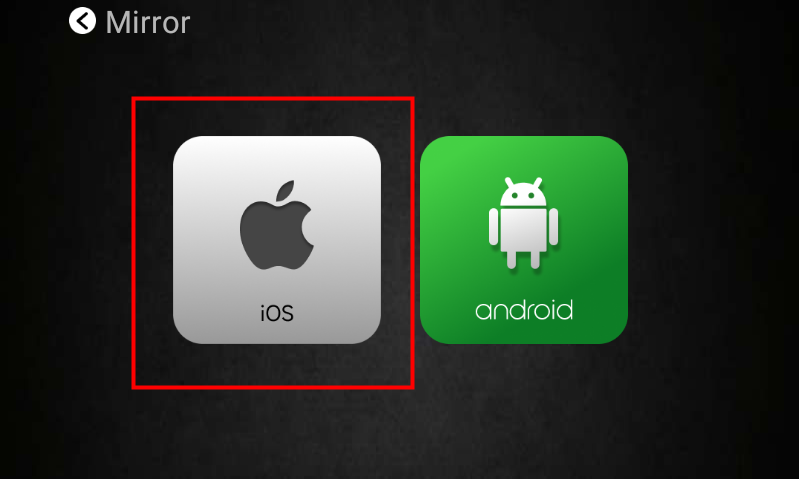

Mirror iOS selection highlighted

Enter Mirror Select IOS

3
Settings app highlighted

Click Settings

4

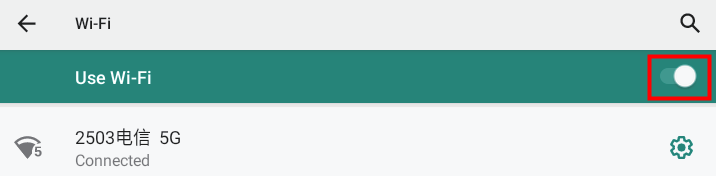

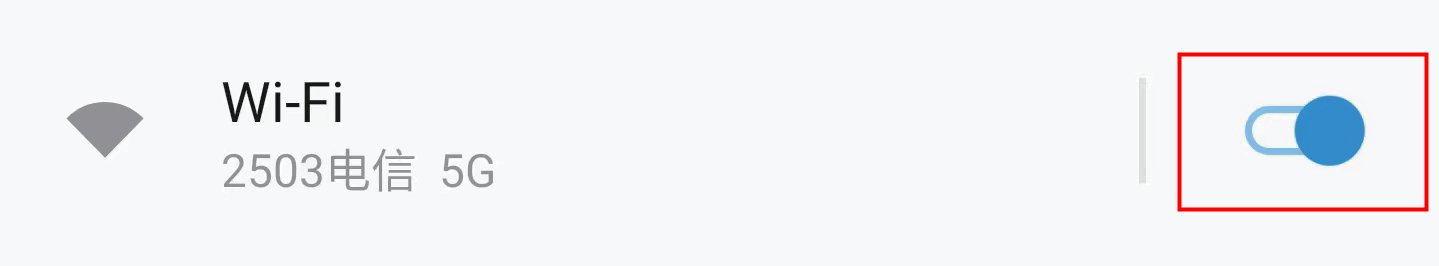

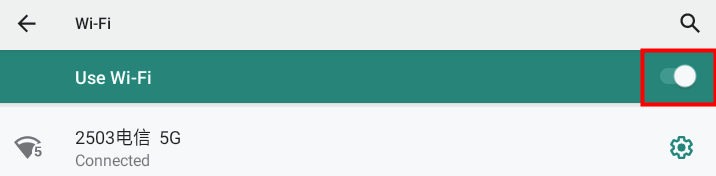

Device Wi-Fi enabled Phone Wi-Fi enabled

The phone and device need to be
connected to the same network

5

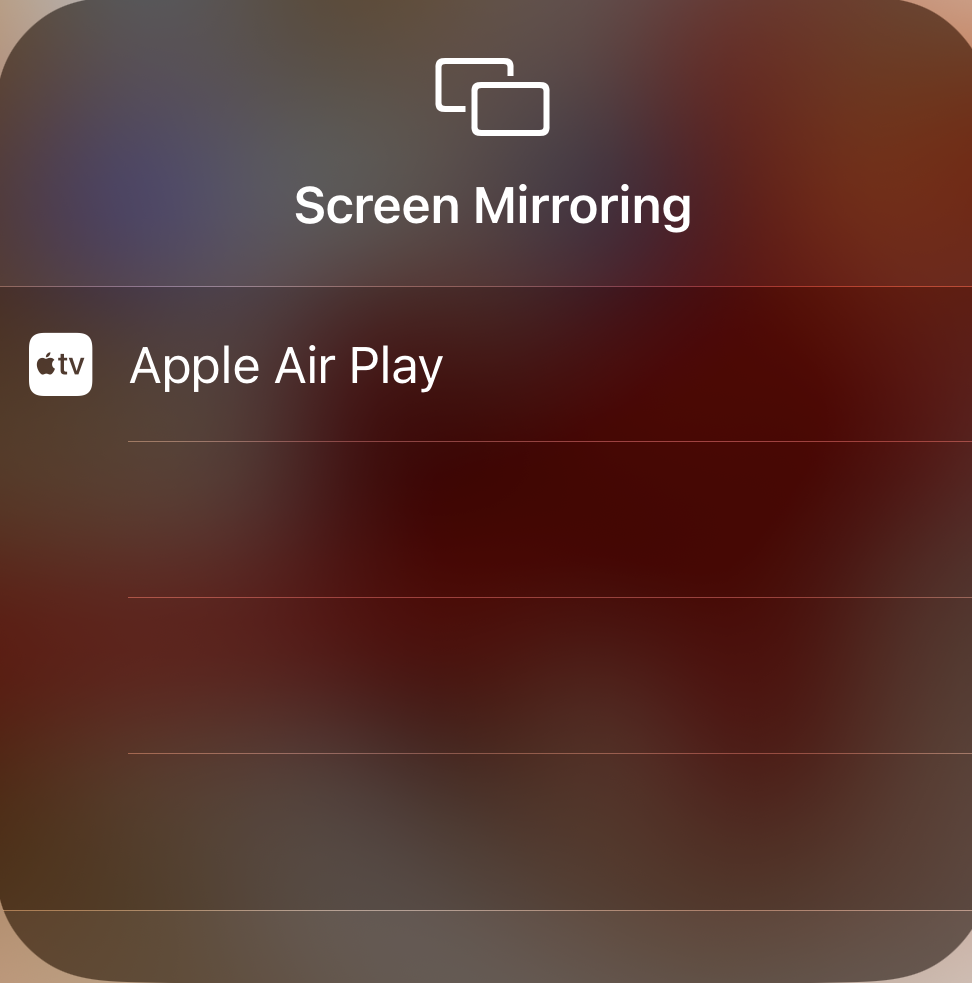

Apple AirPlay screen mirroring option

Click Apple Air Play

6
Wireless mirrorlink display Wireless mirrorlink phone

Transform into wireless mirrorlink

How to mirror Android phone?

Android mirror instructions

  1. Use your mobile phone, turn on the hotspot, let the device connect to the mobile hotspot, and maintain the same network.
  2. Click on the Mirror application.
  3. Click Wireless Projections on your phone to cast the screen.
1
Mirror app highlighted

Click Mirror

2

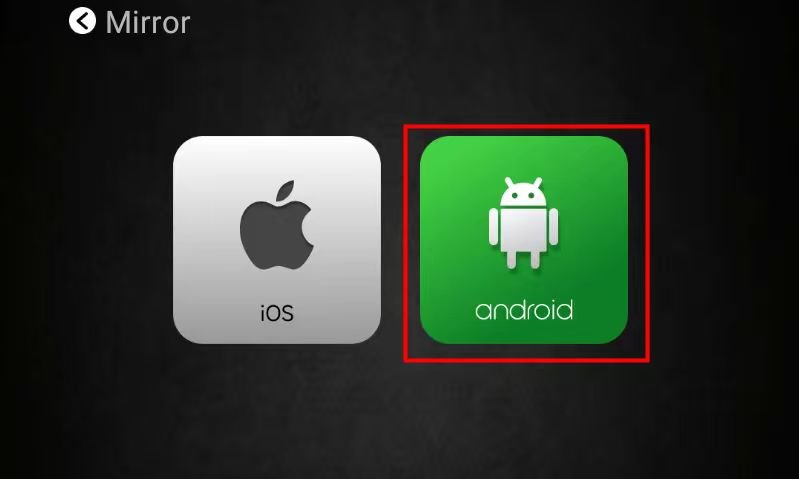

Mirror Android selection highlighted

Enter Mirror Select Android

3
Settings app highlighted

Click Settings

4

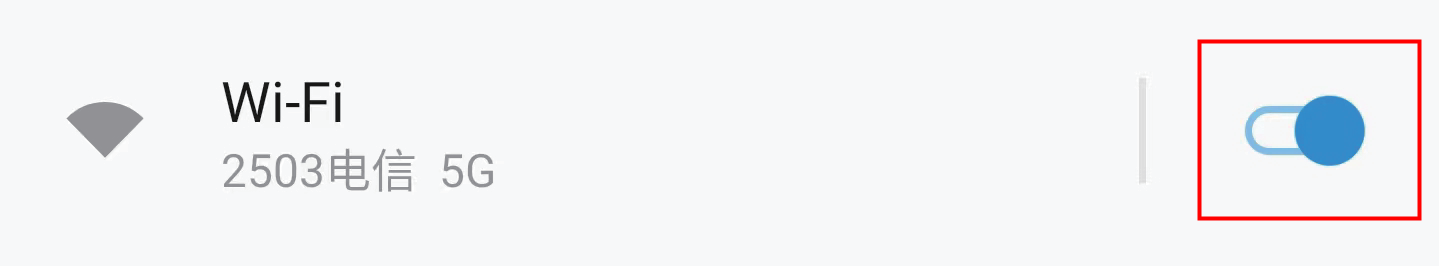

Device Wi-Fi enabled Phone Wi-Fi enabled

The phone and device need to be
connected to the same network

5

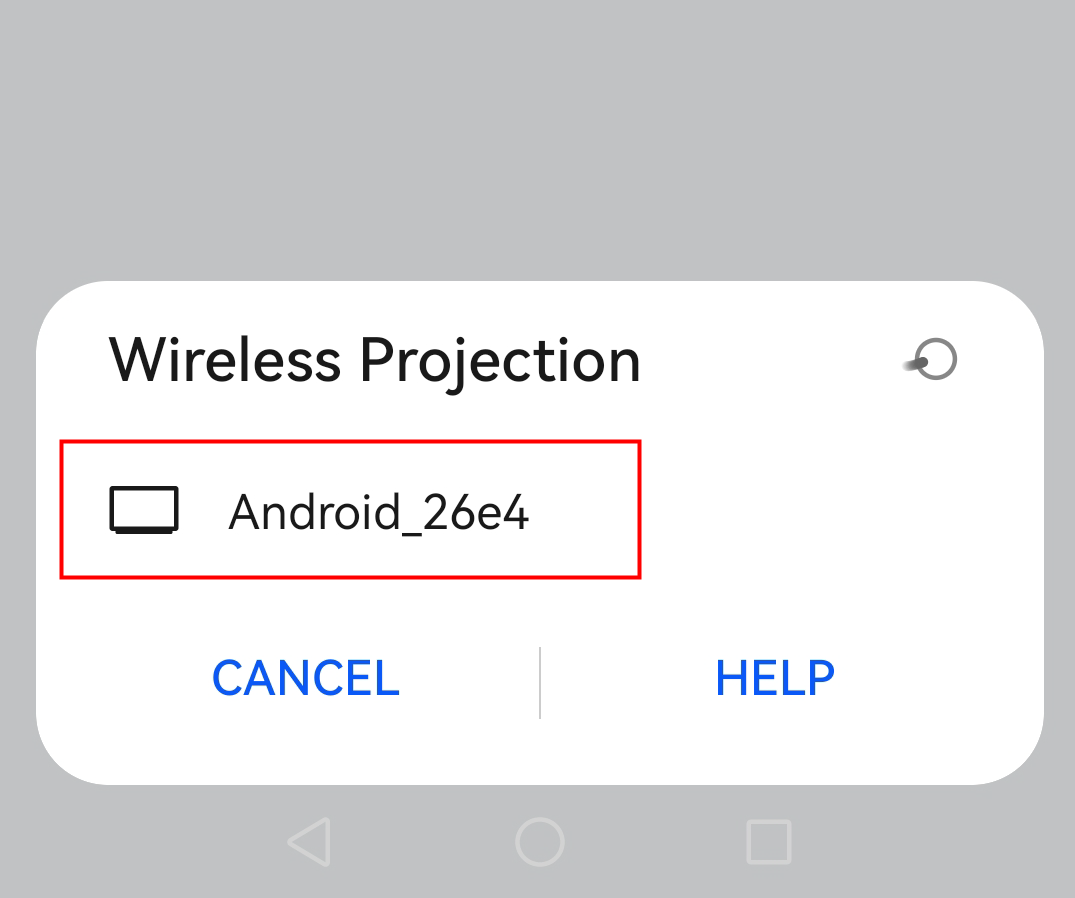

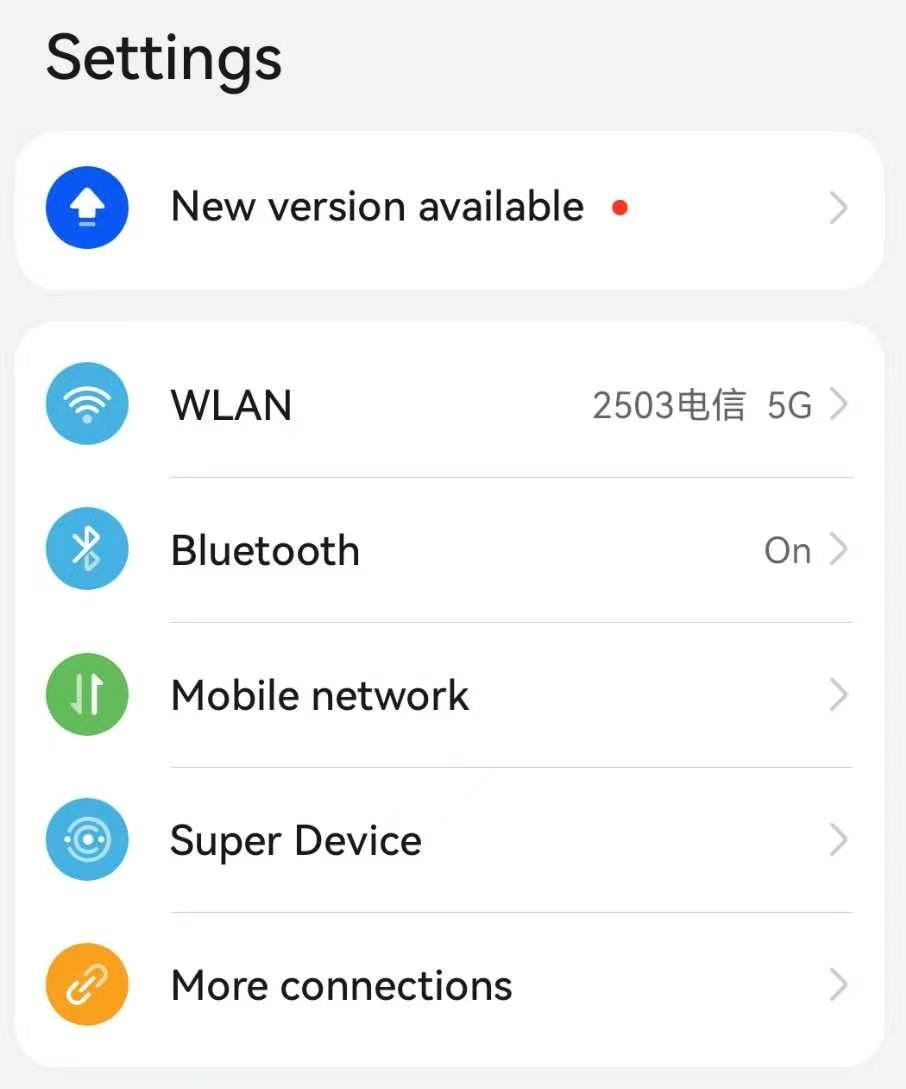

Phone settings list Wireless Projection Android device selection

Click Android-XXXX

6
Wireless mirrorlink display Wireless mirrorlink phone

Transform into wireless mirrorlink

System settings

How to connect Bluetooth device?

  1. Enter settings.
  2. More.
  3. Connect devices.
  4. Pair new device.

How to restore system settings?

  1. Enter settings.
  2. More.
  3. Reset Options.
  4. Delete All Data (Factory Reset).

How to change the language?

  1. Enter settings.
  2. Language & Input.
  3. Language.
  4. Drag the language you want to set to the top.

How to enter factory settings?

  1. Enter settings.
  2. Other settings.
  3. Factory settings: Password 4545.

How to FOTA Update?

  1. Settings.
  2. Version.
  3. Fota Update.

How to check the version?

  1. Enter settings.
  2. Version.
  3. Ai Box version.

After-sales service

Warranty service

Hello! Thank you very much for using this product. This product has passed strict quality inspection. In order to ensure your rights and interests, we will provide you with high-quality after-sales service.

Warranty period

Under normal use, if any failure is caused by the product itself, our company will provide you with warranty services during the warranty period, which is 1 year. If you have any questions, you can contact our customer service staff as soon as possible and our team will solve the problem for you.
